两爪拉马KJ-2152-用于汽车和工业行业的轴承及齿轮拆除
- 产品规格
- 详细信息

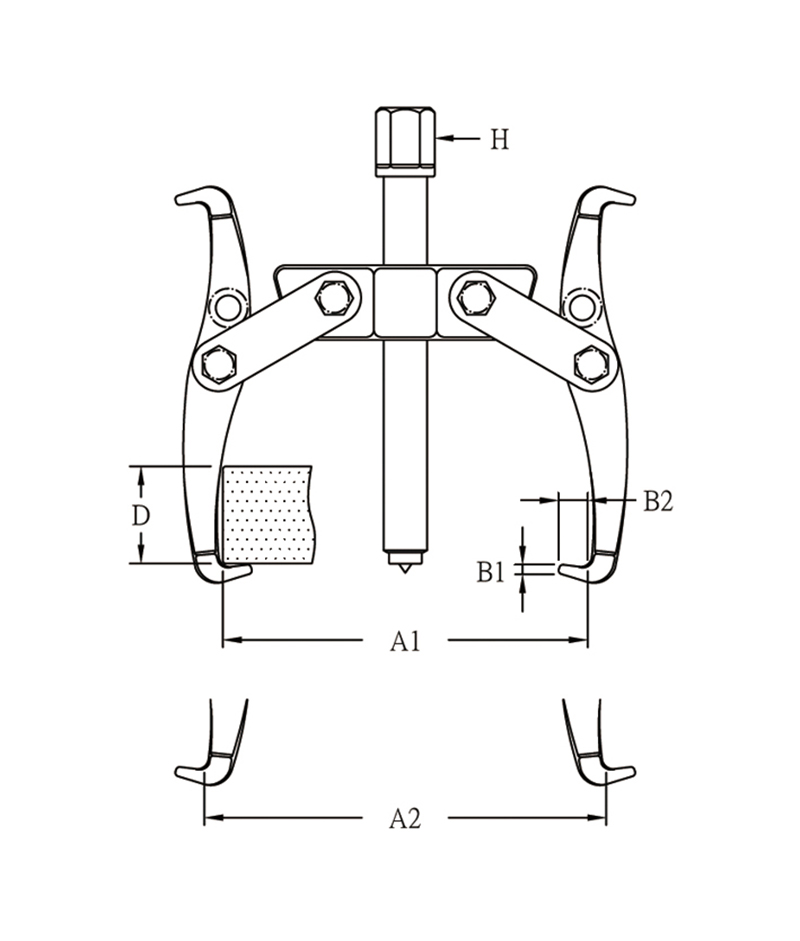

货号 | 规格 inch | A1 | A2 | B1 | B2 | D | H |
| KJ-2076 | 3" | 40 ~ 75 | 40 ~ 75 | 3.5 | 6.5 | 45 | 14 |
| KJ-2102 | 4" | 50 ~ 100 | 50 ~ 100 | 4.0 | 7.5 | 55 | 17 |
| KJ-2127 | 5" | 55 ~ 125 | 55 ~ 125 | 4.0 | 8.5 | 75 | 17 |
| KJ-2152 | 6" | 70 ~ 150 | 70 ~ 150 | 5.5 | 10.5 | 95 | 19 |
| KJ-2203 | 8" | 95 ~ 200 | 95 ~ 200 | 6.5 | 13.0 | 135 | 23 |
| KJ-2254 | 10" | 110 ~ 250 | 110 ~ 250 | 8.0 | 15.0 | 150 | 26 |
| KJ-2305 | 12" | 140 ~ 300 | 140 ~ 300 | 8.0 | 15.5 | 170 | 32 |
